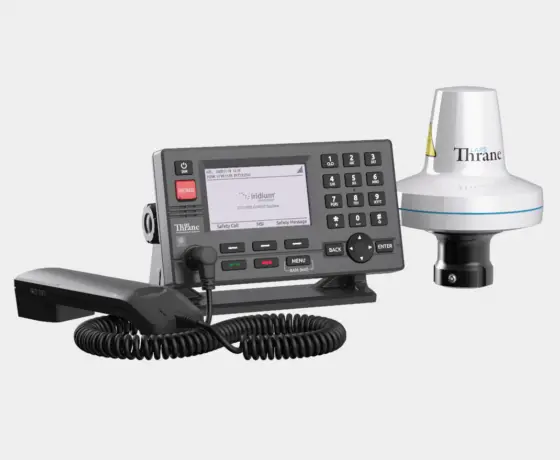

Lars Thrane LT-3100S GMDSS System
Consists of LT-3110 Control Unit, LT-3120 Handset, LT-3121 Cradle, LT-3130 Antenna Unit, Control Unit, 3m Power Cable, User and Installation manual
(Bracket mount no longer included***)
LT-3100S GMDSS System
Specifications:

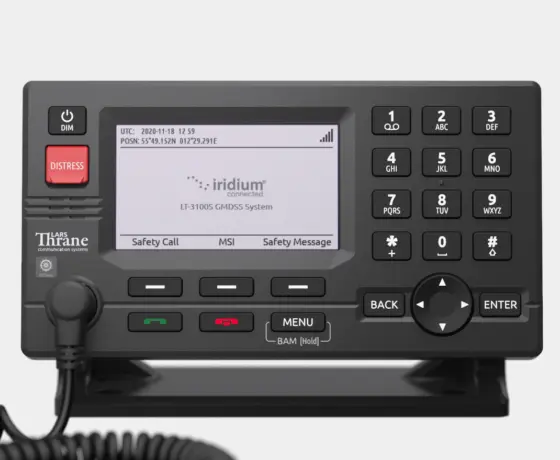

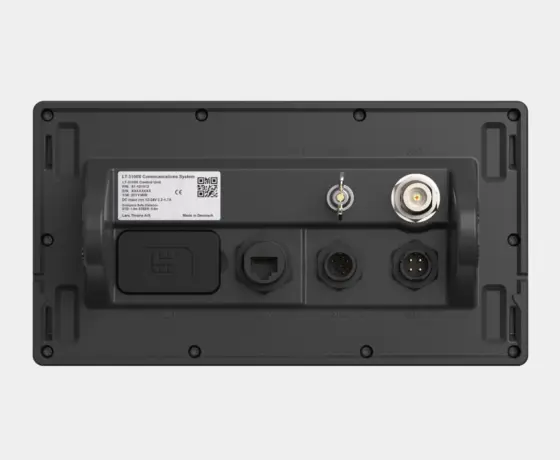

LT-3110S Control Unit
- Weight: 658 g (1.45 lbs)
- Dimensions: 224.0 x 120.0 x 70.0 mm (8.82 x 4.72 x 2.76 in)
- Temperature, operational: -15°C to +55°C (+5°F to +131°F)
- IP rating, dust and water: IP32
LT-3120 Handset Unit
- Weight: 290 g (0.64 lbs)
- Dimensions: 208.8 x 52.8 x 38.2 mm (8.22 x 2.08 x 1.50 in)
- Temperature, operational: -15°C to +55°C (+5°F to +131°F)
- IP rating, dust and water: IP32

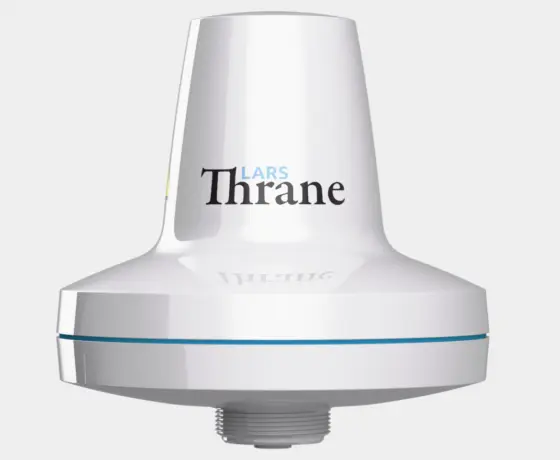

LT-3130 Antenna Unit
- Weight: 687 g (1.51 lbs)
- Dimensions: 151.1 x Ø 149.5 mm (5.95 x Ø 5.89 in)
- Temperature, operational: -40°C to +55°C (-40°F to +131°F)
- IP rating, dust and water: IP67
In order to meet Iridium compliance, both the terminal installer and the person inserting the SIM card (Provisioning the terminal at point of activation) have to have been trained by Lars Thrane prior to installation.
